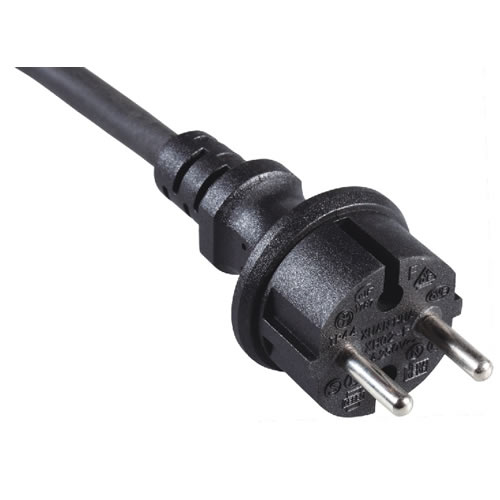

XH02-F CEE 7/4 IP44 Waterproof Power Plug for Outdoor & Industrial Use
This European Standard Waterproof Power Plug Series (Model: XH02-F) is a grounded, three-pin connector designed for use across continental Europe and other regions adopting the CEE 7/4 (Schuko) plug standard with enhanced IP44 water resistance. Ideal for high-power appliances such as outdoor lighting, power tools, garden equipment, and industrial machinery, this plug ensures safe and reliable power delivery at 250V AC / 16A. The plug features two round pins with a diameter of 4.8mm and a grounding clip on the side, conforming to VDE, CE, and NF safety certifications, making it suitable for both residential and commercial applications in wet or dusty environments.
Key Technical Features:
- Plug Type: CEE 7/4 (Schuko), 3-pin, grounded, IP44 waterproof
- Voltage Rating: 250V AC
- Current Rating: Up to 16A
- Certification: VDE, CE, NF compliant
- Cable Options: Available in multiple conductor configurations for flexibility in power load and installation requirements
Wiring Configuration Table:
| Model Code | Cable Type | Conductor Specification |
|---|---|---|
| H05VV-F | PVC insulated | 2×0.75–1.5 mm² |
| H05RR-F | Rubber insulated | 2×0.7–1.5 mm² |
| H05RN-F | Neoprene rubber | 2×0.75–1.0 mm² |
| H07RN-F | Heavy-duty rubber | 2×1.0–1.5 mm² |
