NEMA Power Adapter XH/XN/XL Series for Industrial & RV Use
This NEMA Standard Power Adapter Series (Models: XH, XN, XL, TT) is engineered for seamless power conversion across global electrical systems. Designed for industrial, commercial, and recreational applications, these adapters bridge the gap between regional plug standards and equipment requirements. Whether you need to connect a NEMA 5-15P device to an IEC C13 socket, or convert a TT-30P generator output to a NEMA 14-50R RV inlet, our adapters ensure safe, reliable, and code-compliant power delivery.
Key Technical Features:
- Compliance: Meets NEMA WD-6, UL 498, and CSA C22.2 No. 42 standards for North America; compatible with IEC 60320 C13/C14 for global use.
- Voltage & Current Ratings: Supports 125V AC (15A/20A), 250V AC (15A/20A/30A/50A), and 120/240V AC (30A/50A) configurations.
- Plug Types: Includes NEMA 5-15P, 5-20P, 6-15P, 6-20P, L5-20P, L6-20P, L14-30P, L14-50P, TT-30P, and IEC C13/C14 connectors.
- Material & Safety: Constructed with flame-retardant thermoplastic housing and copper alloy contacts for durability and low resistance. All models feature grounding pins and polarized designs where applicable.
- Applications: Ideal for data centers (PDU), RV parks, construction sites, medical facilities, and international travel.
Wiring Configuration Table:
| Model | Input Plug | Output Socket | Voltage | Current | Application |
|---|---|---|---|---|---|
| XH-A0115 | NEMA 5-15P | IEC C13 | 125V AC | 15A | Computer, Monitor |
| XH-A18 | NEMA 5-15P | IEC C14 | 125V AC | 15A | Server, UPS |
| XH-A19 | NEMA 5-20P | IEC C13 | 125V AC | 20A | High-power Device |
| XH-A20 | NEMA 6-15P | IEC C13 | 250V AC | 15A | Industrial Equipment |
| XN515P/C13-A | NEMA 5-15P | IEC C13 | 125V AC | 15A | General Purpose |
| XN515P/C13-B | NEMA 5-15P | IEC C13 | 125V AC | 15A | General Purpose |
| XN615P/C13-A | NEMA 6-15P | IEC C13 | 250V AC | 15A | Heavy-duty Tool |
| XN615P/C13-B | NEMA 6-15P | IEC C13 | 250V AC | 15A | Heavy-duty Tool |
| XH-A1015 | NEMA 5-15P | IEC C13 | 125V AC | 15A | Office Equipment |
| XH-A03215 | NEMA 5-20P | IEC C13 | 125V AC | 20A | Server Rack |
| XH-A0315 | NEMA 5-15P | IEC C13 | 125V AC | 15A | Laptop Charger |
| XH-A04215 | NEMA 5-20P | IEC C13 | 125V AC | 20A | Data Center |
| XH-A01415 | NEMA 5-15P | IEC C13 | 125V AC | 15A | Home Appliance |
| XC14/N515R-A | IEC C14 | NEMA 5-15R | 125V AC | 15A | International Travel |
| XN515P/N520R-A | NEMA 5-15P | NEMA 5-20R | 125V AC | 15A → 20A | Power Upgrade |
| XNTT30P/N515R-A | TT-30P | NEMA 5-15R | 120/240V AC | 30A → 15A | Generator to RV |
| XN650P/N1450R-A | NEMA 6-50P | NEMA 14-50R | 250V AC | 50A | EV Charger |
| XN1450P/N650R-A | NEMA 14-50P | NEMA 6-50R | 250V AC | 50A | Dryer to Welder |
| XL530P/N1450R-A | NEMA L5-30P | NEMA 14-50R | 125V AC | 30A → 50A | Generator to RV |
| XNTT30P/N1450R-A | TT-30P | NEMA 14-50R | 120/240V AC | 30A → 50A | Generator to RV |
| XL1430P/N1450R-A | NEMA L14-30P | NEMA 14-50R | 120/240V AC | 30A → 50A | Generator to RV |
| XN515P/TT30R-A | NEMA 5-15P | TT-30R | 120/240V AC | 15A → 30A | RV to Generator |
| XN515P/TT30R-B | NEMA 5-15P | TT-30R | 120/240V AC | 15A → 30A | RV to Generator |
| XN520P/TT30R-A | NEMA 5-20P | TT-30R | 120/240V AC | 20A → 30A | RV to Generator |
| XN1450P/TT30R-A | NEMA 14-50P | TT-30R | 120/240V AC | 50A → 30A | RV to Generator |

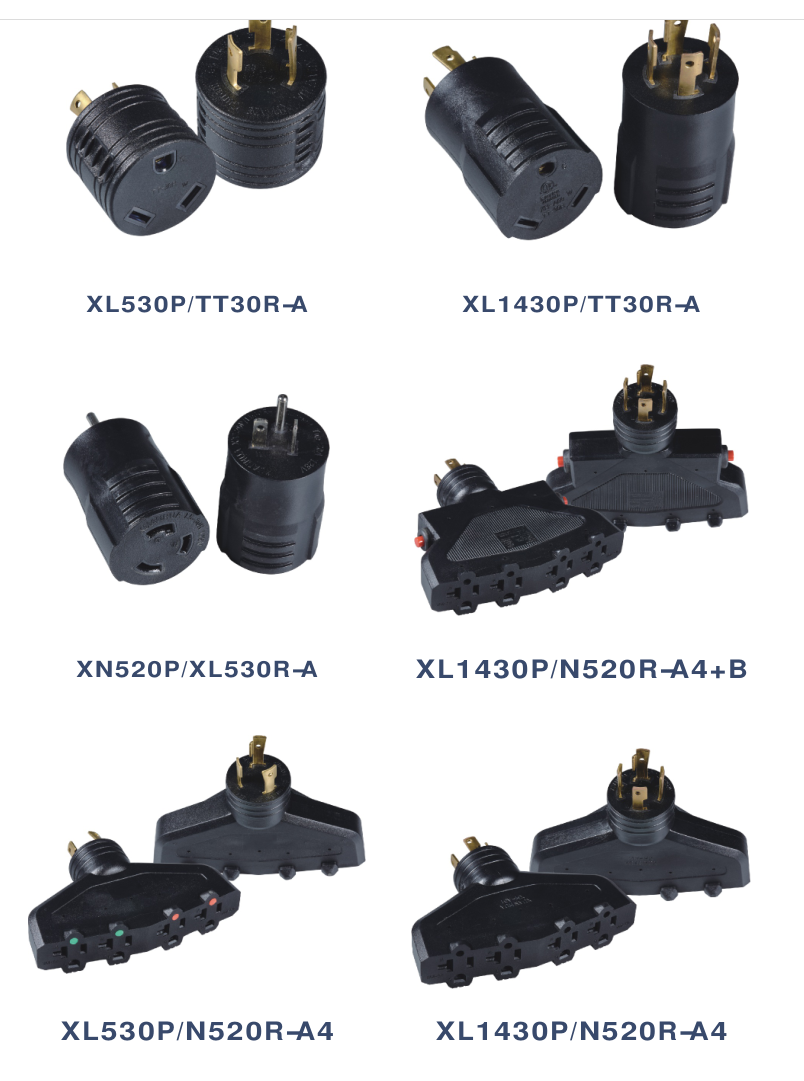

| XL530P/TT30R-A | NEMA L5-30P | TT-30R | 125V AC | 30A → 30A | Generator to RV |
| XL1430P/TT30R-A | NEMA L14-30P | TT-30R | 120/240V AC | 30A → 30A | Generator to RV |
| XN520P/XL530R-A | NEMA 5-20P | NEMA L5-30R | 125V AC | 20A → 30A | Industrial Tool |
| XL1430P/N520R-A4+B | NEMA L14-30P | NEMA 5-20R | 120/240V AC | 30A → 20A | Generator to Tool |
| XL530P/N520R-A4 | NEMA L5-30P | NEMA 5-20R | 125V AC | 30A → 20A | Generator to Tool |
| XL1430P/N520R-A4 | NEMA L14-30P | NEMA 5-20R | 120/240V AC | 30A → 20A | Generator to Tool |
| XL530P/L1430R-A | NEMA L5-30P | NEMA L14-30R | 125V AC | 30A → 30A | Generator to Generator |
| XL1430P/L530R-A | NEMA L14-30P | NEMA L5-30R | 120/240V AC | 30A → 30A | Generator to Generator |
| XL1430P/N650R-A | NEMA L14-30P | NEMA 6-50R | 120/240V AC | 30A → 50A | Generator to Welder |
| XN515P/XL530R-A | NEMA 5-15P | NEMA L5-30R | 125V AC | 15A → 30A | Tool to Generator |
| XN1030P/N650R-B | NEMA 10-30P | NEMA 6-50R | 250V AC | 30A → 50A | Dryer to Welder |
| XN1030P/N1430R-B | NEMA 10-30P | NEMA L14-30R | 250V AC | 30A → 30A | Dryer to Generator |

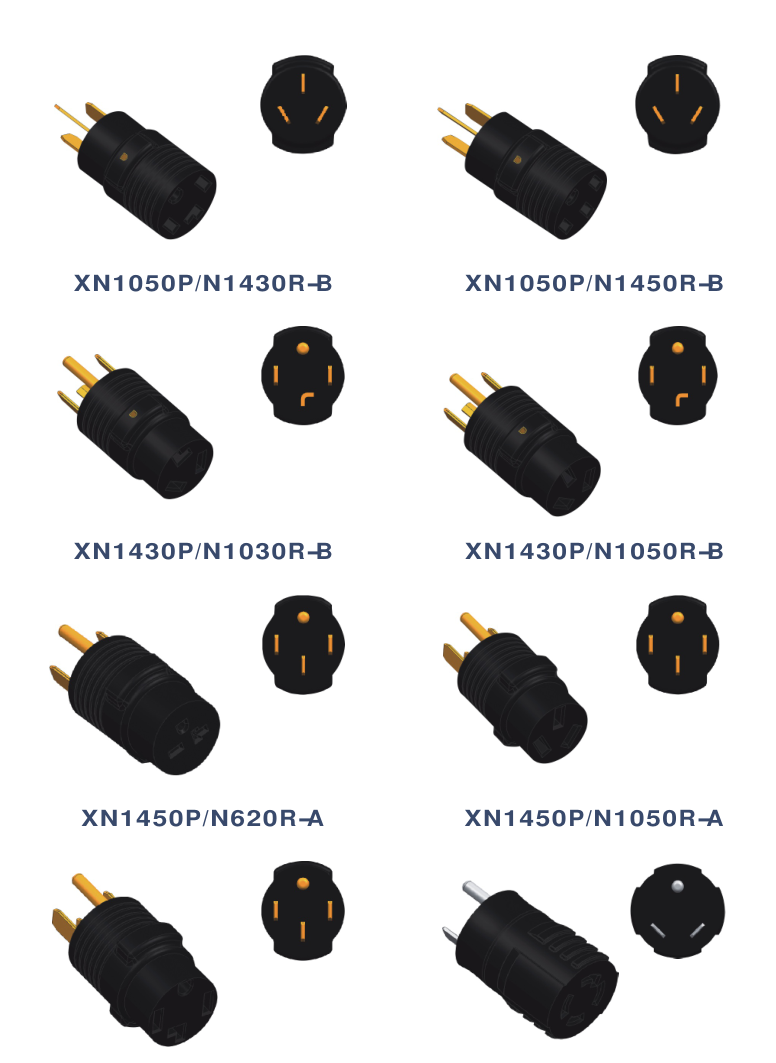

| XN1050P/N1430R-B | NEMA 10-50P | NEMA L14-30R | 250V AC | 50A → 30A | Dryer to Generator |
| XN1050P/N1450R-B | NEMA 10-50P | NEMA 14-50R | 250V AC | 50A → 50A | Dryer to EV Charger |
| XN1430P/N1030R-B | NEMA L14-30P | NEMA 10-30R | 120/240V AC | 30A → 30A | Generator to Dryer |
| XN1430P/N1050R-B | NEMA L14-30P | NEMA 10-50R | 120/240V AC | 30A → 50A | Generator to Dryer |
| XN1450P/N620R-A | NEMA 14-50P | NEMA 6-20R | 250V AC | 50A → 20A | EV Charger to Tool |
| XN1450P/N1050R-A | NEMA 14-50P | NEMA 10-50R | 250V AC | 50A → 50A | EV Charger to Dryer |
