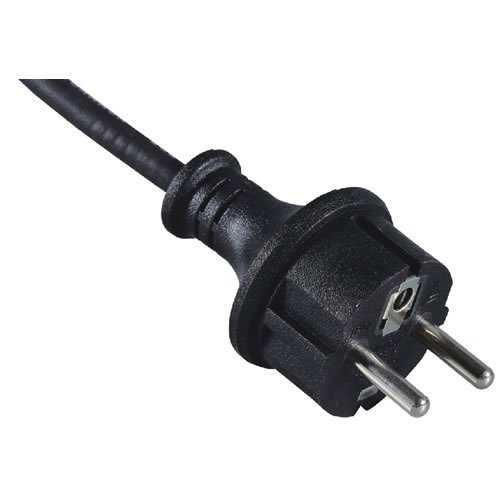

XH03-F CEE 7/7 IP44 Waterproof Power Plug for Outdoor & Industrial Use
This European Standard Waterproof Power Plug Series (Model: XH03-F) is a grounded, three-pin connector designed for use across continental Europe and other regions adopting the CEE 7/7 plug standard with enhanced IP44 water resistance. Ideal for high-power appliances such as outdoor lighting, power tools, garden equipment, and industrial machinery, this plug ensures safe and reliable power delivery at 250V AC / 16A. The plug features two round pins with a diameter of 4.8mm and a central grounding hole, conforming to VDE, CE, and NF safety certifications, making it suitable for both residential and commercial applications in wet or dusty environments.
Key Technical Features:
- Plug Type: CEE 7/7 (Schuko/E-type hybrid), 3-pin, grounded
- Voltage Rating: 250V AC
- Current Rating: Up to 16A
- Certification: VDE, CE, NF compliant
- Water Resistance: IP44 rated for outdoor and damp environments
- Cable Compatibility: Supports H05VV-F, H05RR-F, H05RN-F, H07RN-F rubber cables
Wiring Specification Table:
| Cable Type | Conductor Configuration | Cross-Sectional Area (mm²) |
|---|---|---|
| H05VV-F | 3×0.75 | 2.5 |
| H05RR-F | 3×0.75 | 2.5 |
| H05RN-F | 3×0.75 | 1.0 |
| H07RN-F | 3×1.0 | 2.5 |
